The Sokrates String Transformation Language (SSTL) is a simple embedded programming language enabling you to transform a phrase extracted from a file path or file content into another string.

You define SSTL scripts as a simple list of commands with parameters, a processing pipeline. Each next command takes as an input the result of the previous command.

SSTL supports the following commands:

  • extract (regex1)
  • replace (regex, string)
  • append (text)
  • prepend (text)
  • trim
  • lowercase
  • uppercase

Sokrates uses SSTL in several places:

  • to define dynamic names of components in logical decompositions (the meta components section)
  • to define dynamic names of concerns (the meta concerns section)
  • to find components names for dependencies (the meta rules section)

Examples

The following fragment of a Sokrates configuration files uses SSTL to find dependencies of files to org.apache modules:

{
    "pathPattern": ".*[.]java",
    "contentPattern": "import org[.]apache[.].*",
    "use": "content",
    "ignoreComments": true,
    "nameOperations": [
        {
            "op": "extract",
            "params": [
                "import org[.]apache[.][a-zA-Z0-9_]+"
            ]
        },
        {
            "op": "replace",
            "params": [
                "import org[.]apache[.]",
                ""
            ]
        }
    ]
}

This script does the following:

  • looks for any Java file that contains at least one line starting with “import org.apache.” (matches the regex expression “import org[.]apache[.].*”)
  • it then uses as an input for pressing the found line (the parameter use is set to “content”)
  • for each such line Sokrates performs two chained SSTL trafsormations:
    • extract the regex pattern “import org[.]apache[.][a-zA-Z0-9_]+”
    • remove “import org[.]apache[.]” (replace it with an empty string)

Figure 2 illustrates this processing on two examples.

Figure 1: A fragment of a Sokrates configuration files uses SSTL to find dependencies of files to org.apache modules.

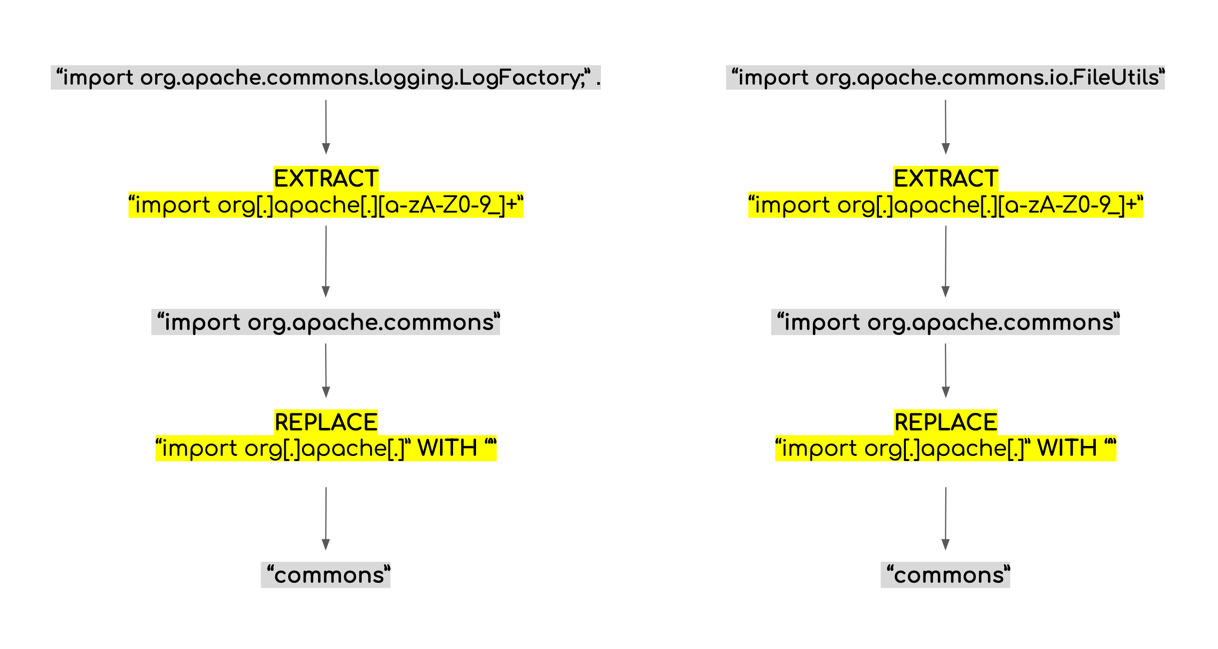

Figure 2: The steps of SSTL processing for two import statements for a script defined in Figure 1.
